Custom OS Template (Windows)

An organisation administrator can create a Customised OS Template which can be used for instantiating remote desktops. This is also useful for activating your own OS licence.

These steps are essential to create an image successfully. Tread carefully.

Important:

About Disk Partition
1. Customised template requires only one disk partition,  or two partitions: one is EFI/Boot partition and the other is the system and data partition.
2. LVM partition is not supported, please do not use.
3. The wrong partition scheme will cause disk auto-resize and machine naming features to fail.



Windows

1. Install "Red Hat VirtIO SCSI pass-through controller

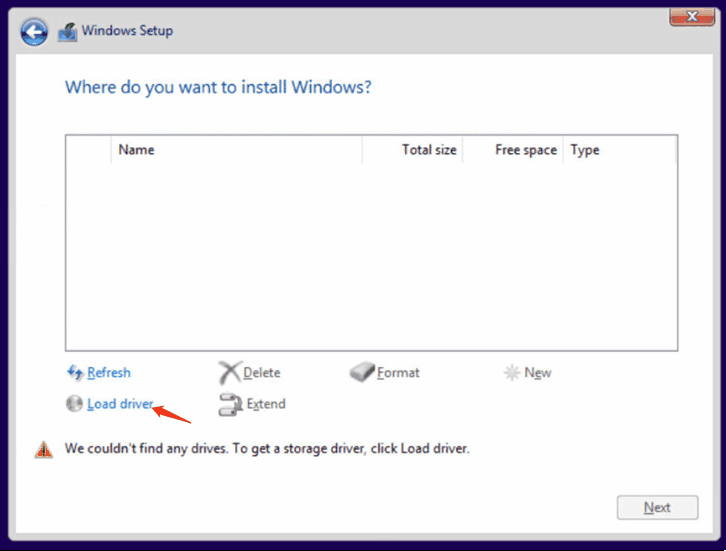

  When you see the prompt, "Where do you want to install Windows?", click "Load drivers" and choose the correct driver. After that, the storage drive will be visible.

2. Initial Setup

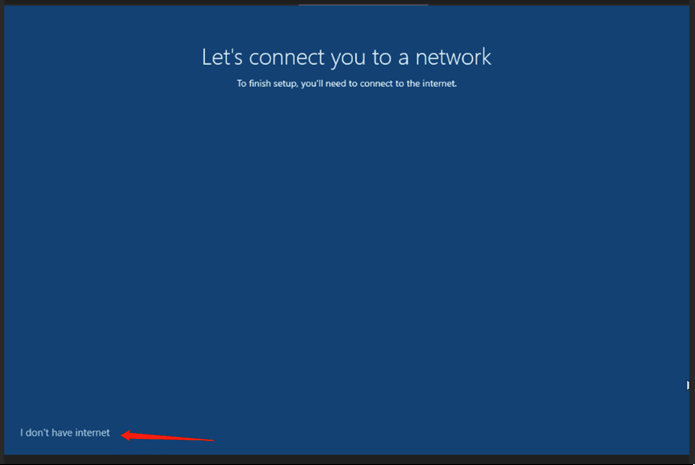

   When asked "Let's connect you to a network", click I don't have internet.

   When prompted "There's more to discover...", click Continue with limited setup.

   Enter any username, but leave the password field blank.

3. Install Virtio-win drivers and guest agents

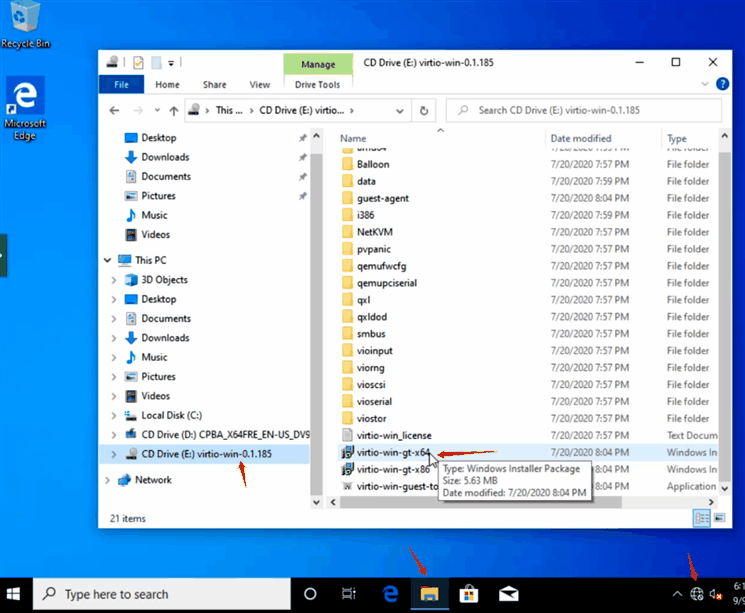

  Once the machine starts and you're logged in, navigate to CD Drive E and run Virtio-win-guest-tools. This will install the virtio drivers, spice vdagent and qemu guest agent. Click Next and OK to complete the installation.

4. Disable Hibernate

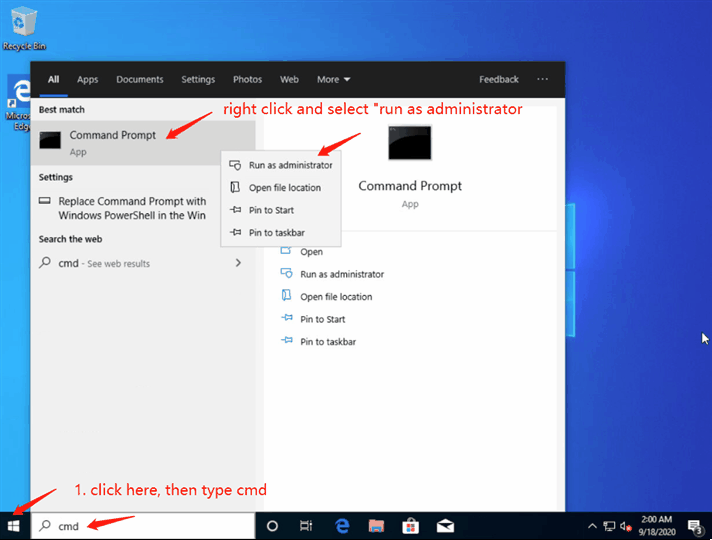

  Open Command Prompt as an administrator by right-clicking and selecting "Run as administrator". Type "powercfg.exe /hibernate off" and press Enter.

5. Enable Shutdown/Restart Windows 10 without Any Prompts

    In the registry editor, navigate to this key HKEY_USERS\.DEFAULT\Control Panel\Desktop.

    Create a new String Value named AutoEndTasks and set its value to 1.





6. Verify that the required services exist and set them to "Automatic Start"

• Spice-Vdagent : provides clipboard support for qemu VNC

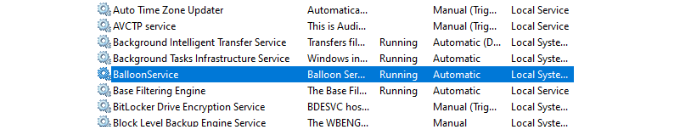

• BalloonSerivce:   provides guest memory usage stats





7. Install and configure Tightvnc to allow proper VNC connection

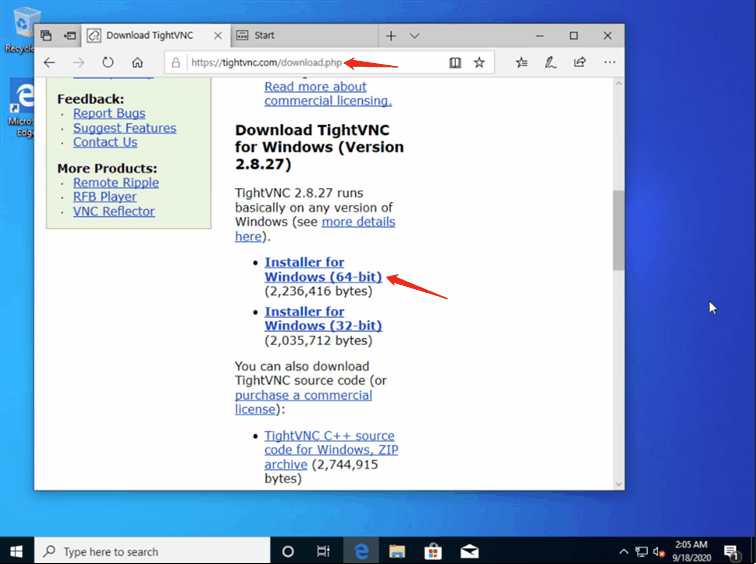

  Visit https://www.tightvnc.com/download.php to download the TightVNC for Windows installer.

  Proceed with the installation. Once it's finished, disable authentication.

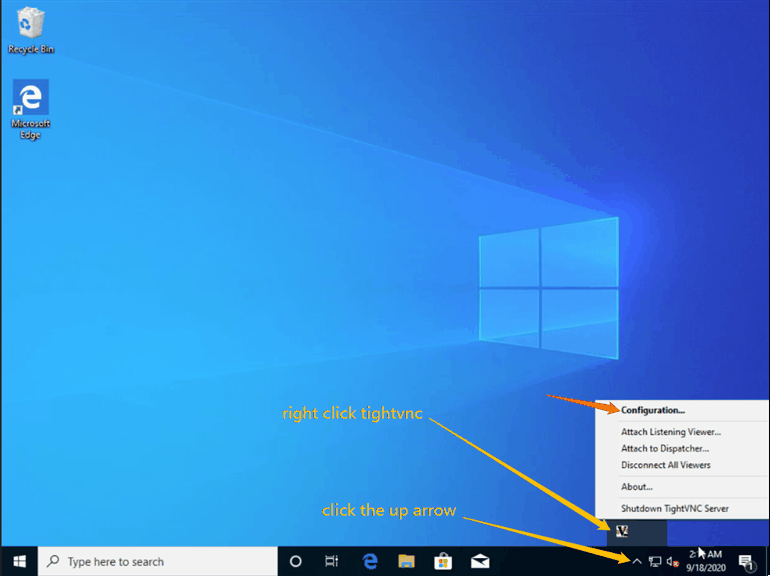

  Open "TightVNC service configuration" and configure it



8. Enable Shared-drive

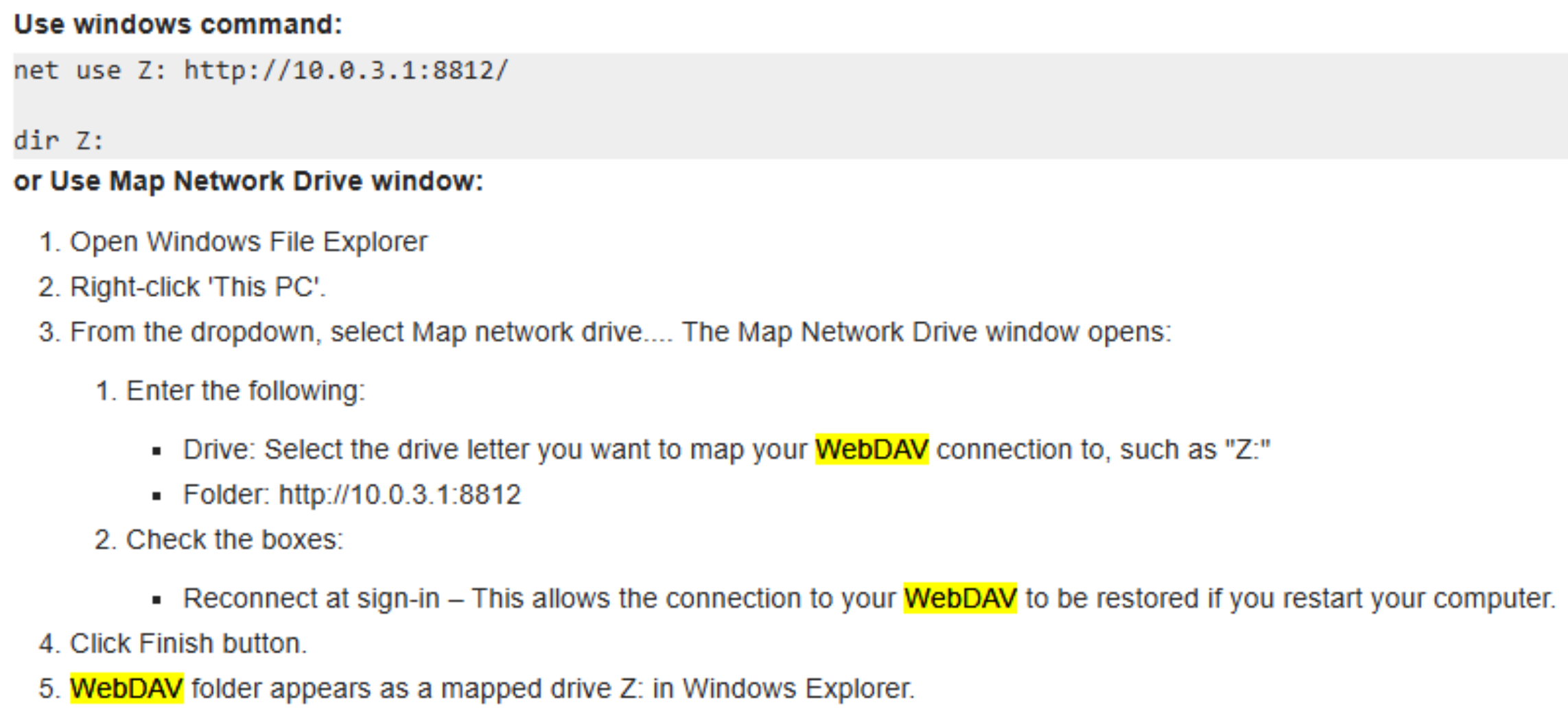

    Shared-drive enables file sharing between cloud desktops within a training course, or between your personal PC and the cloud desktop. This feature uses WebDAV file sharing technology. You must map the drive before using it. See the screenshot below for instructions.





9. Shut down your Windows properly

  Click the Windows icon in the bottom-left corner, then Power, and then Shut down.





Please Note

To add extra optional features such as

• DDWebdav to allow the trainer's content folders to be synchronised to each participant's machine,
• or DDUpload – to easily upload files within a DaDesktop machine;

Please contact DaDesktop Tech Support.
